Model No: CDTD60С

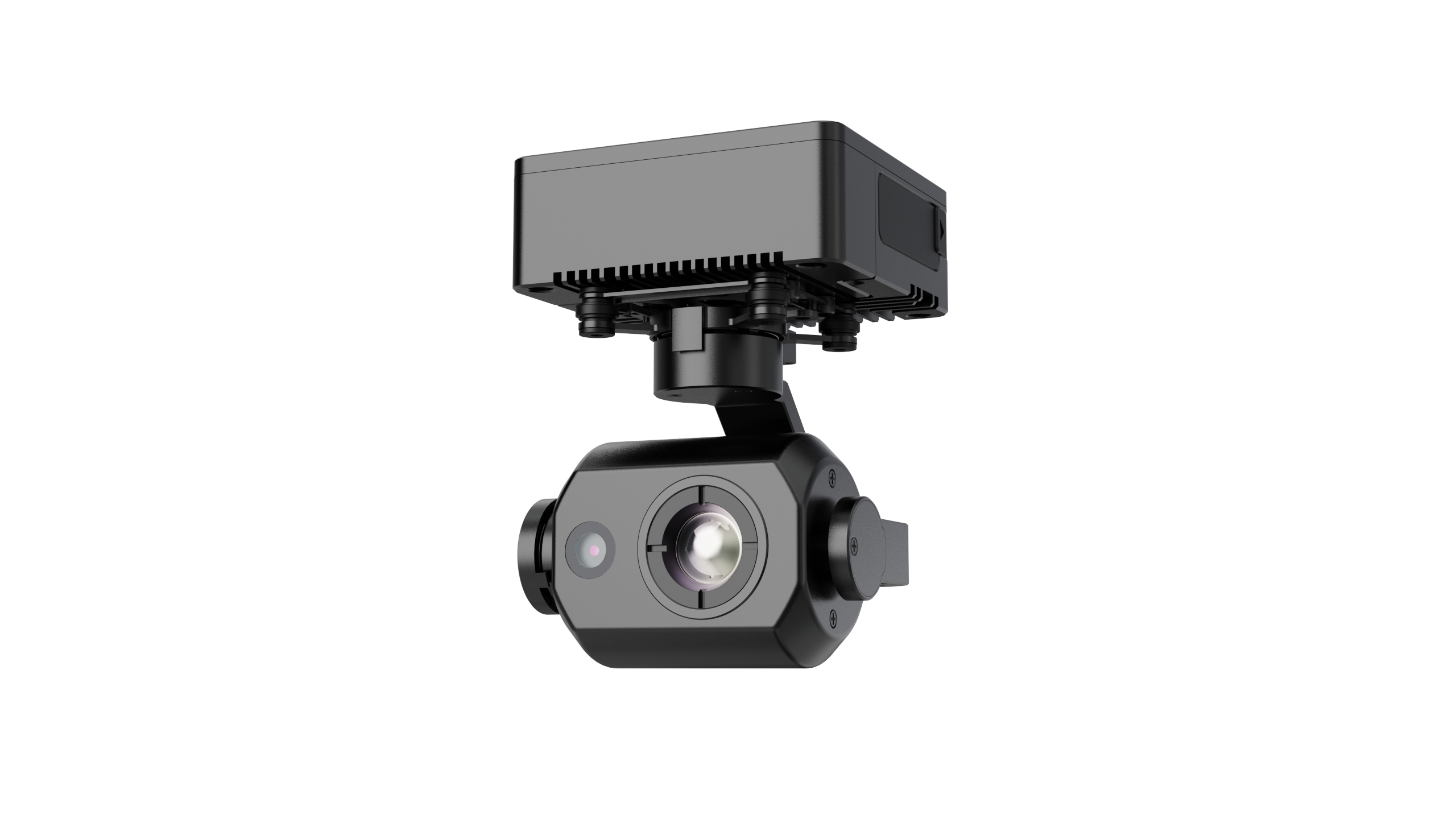

Drone Gimbal UAV Camera CDTD60С drone gimbal
Tactical Miniature Electro-Optical Gimbal for Drone Gimbal UAV Camera
Quantity :
Drone Gimbal UAV Camera Micro Drone gimbal series
CDTD60C
Tactical Miniature Electro-Optical Drone Gimbal

CDTD60C is a tactical miniature three-axis three-light inertial stabilization drone gimbal, integrating a 13-megapixel high-definition visible-light wide-angle camera, a 2-megapixel starlight visible-light camera, alaser rangefinder, and a gyro-stabilized platform. lt enables long-distance observation of personnel and vehicles, real-time visible-light video transmission, all-weather day-night observation and target detection, as well as target positioning capabilities for drone gimbal Application scenarios: drone gimbal for All-weather urban security and anti-terrorism monitoring, emergency relief and disaster response, industrial and infrastructure inspection, power and energy facility maintenance border, patrol UAV Gimbal , military terrain reconnaissance and long-range target reconnaissance, target guidance and strike. |
Camera Parameters for drone camera
| Visible | 13M CMOS | 2M Starlight CMOS | |
| Visible Light Sensor | 1/3”13M CMOS | Visible Light Sensor | 1/2.8"CMOS. |
| Pixel size | 1.12umx1.12um | Pixel size | 2.9umx2.9um |
| Focal length | 3.5mm | Focal length | 16mm |
| FOV | 70.4°x39.6°(±5%、1080P) | FOV | 19.9°x11.2°(±5%、1080P) |
| Photo resolution | 1920x1080 | Photo resolution | 1920x1080 |
| Video resolution | 1920x1080@50fps | Video resolution | 1920x1080@50fps |
| Recognition | Visibility ≥8km, adult recognition distance ≥1500 m; | Urban low light: adult recognition ≥200m. | |
| Laser | Value | ||
| Safety Requirements | Class 1 Laser | Laser Ranging Rang | 10m-1200m |
| Laser Wavelength | 905nm | Ranging Accuracy | ±1m |
| Measurement FrequenCy | ≤4Hz |
Basic parameters of Drone Gimbal
| Parameter | Value | Parameter | Value |
| Stabilization | 0.02*(1o, disturbance0.5*@1Hz) | Weight/Al of gimbal | 202g+5g/35g±2g |
| Frame Form | T-Axis Mechanical Gyro Stabilization | Gimbal Size | 84.0mmx82.0mmx109.0mm |
| Frame Design Scope | -110°~+110°/-45°~+45°/-135°~+909 | Target location | CEP 5M |
| Angle accuracy | 2mrad | Video output | Internet, HDMI |
| Rotation Range | -90°~+90°/-90°~ +30° | Control | TTL serial port, Network |
| Power Consumption | ≤10W | Storage | ≤128G Micro SD card |
| Power | DC12V~DC17V@3A | Operating Temp. | -10℃~+55℃/-45℃~+60℃ |
