Model No: CGTD070B

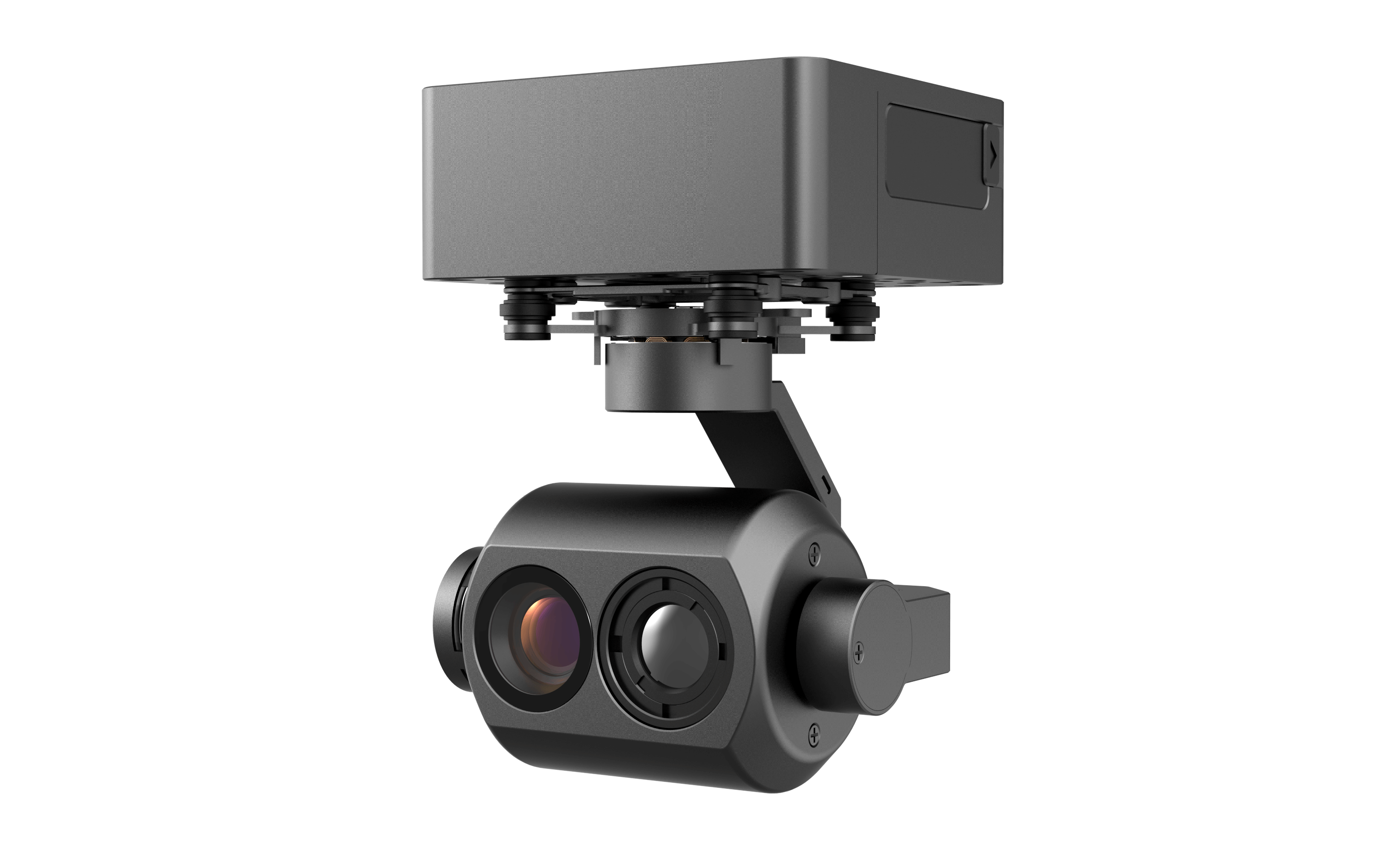

CGTD070B long-wave uncooled infrared camera
Stabilization Gimbal with Micro Three-Axis and Dual Optical Camera
Quantity :
Micro gimbal series
CGTD070B
Stabilization Gimbal with Micro
Three-Axis and Dual Optical Camera
GTD070B is a micro tri-axial dual-light ayro-stabilized gimbal, integrating a long-wave uncooled infrared camera, a 2-megapixel starlight visible light camera, and a gyro-stabilized platform. Featuring smalsize, light weight, portability, and high reliability, the CGTD070B stabilized gimbal can be mounted onmicro-UVA to achieve real-time video transmission of visible light and infrared.The product also has functions of autonomous target recoqnition, target locking, and tracking. Application scenarios: All-weather urban security and counter-terrorism monitoring, emergency reliefand disaster response, industrial and infrastructure inspection, border patrol, military terrain reconnaissance,and long-range target reconnaissance. |
Camera Parameters
| Infrared | Value | Value | |
|---|---|---|---|
| Wavelength | 8-14um, long-wave | Focal length | 9.1mm |
| Pixel size | 12um | FOV | 48.3*x38.6°(+5%,1080P) |
| Pixel number | 640x512 | ||
| Recognition | Night visibility ≥8km, 60% RH, AT=5K: adult recognition distance ≥ 120m | ||
| Visible | Value | Value | |
| Visible light sensor | 1/2.8”CMOS | FOV | 51.5°x28,9°(+5%,1080P) |
| Pixel size | 2.9umx2.9um | Photo resolution | 1920x1080 |
| Focal length | 6.19mm | Video resolution | 1920x1080@50fps |
| Recognition | Visibility ≥8km, adult recognition distance 2200m |
Basic parameters
| Parameter | Value | Parameter | Value |
| Frm / Ctrl Azimuth | -110~+110-/-90°~+90° | Weight/Al of gimbal | 90g+5g/35g+2g |
| Frm / Ctrl Pitch | -120°~+90°/-90°-+30 | Gimbal Size | 50.0mmx57.0mmx62.0mm |
| Frm Roll | -30*~ +30° | size of the control box | 58.0mmx55.0mmx26.5mm |
| Stabilization | 0.02*(1o, disturbance0.5*@1Hz) | Video output | LAN、HDMI |
| Recognition | Persong and vehicle | Control | UartTTL、UDP、SBUS |
| Accuracy | >=85% | Storage | ≤128G Micro SD card |
| Video Code | H.265/H.265 | Operating Temp. | -10℃~+55℃ |
| Video bandwidth | 2M/4M | Power | DC9V-DC16.8V@3A,Steady 8w |
